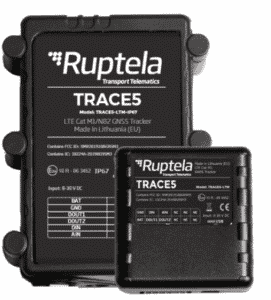

Trace5

Trace5 is a compact GNSS-based Automatic Vehicle Location (AVL) tracker with all essential features for vehicle tracking and fleet management. It is suitable for logistics, delivery, utility services, car rental and vehicle financing use cases. This GNSS tracker uses LTE Cat M1/NB2 (4G) connectivity with 2G fallback network and a premium GPS module from Ublox.

IP67 version with rugged housing is also available which fully protects device from water, dirt and mechanical factors. The device can be installed outside the cabin (i.e. near the engine) and successfully operate.

  • 4G (LTE CAT-M1) with 2G fallback connectivity
  • Internal antenna, and built-in battery
  • 2 x Digital outputs, 1 x Digital input, 1 x Analog input
  • IP67 version available
latest

Specification

Overview

  • 4G (LTE CAT-M1) with 2G fallback connectivity
  • Internal antenna
  • Built-in battery
  • 2x Digital outputs
  • 1x Analog input
  • 1x Digital input
  • Mini USB interface
  • RG indication LED
  • Jamming detection
  • Size: TRACE5-LTM: 65 x 61 x 22 mm; TRACE5-LTM-IP67: 95 x 77 x 29 mm

Detailed specification

All manuals are available at doc.ruptela.lt.

Configuration

Device Center: configure trackers with ease

Ruptela tracking devices are configured using the Device Center application.

Device Center is a clear and user-friendly application with semi-automated configuration.  All-new design and configuration process improvements help new and advanced users with tracker configuration.

Read More

Application

TRACE5 features:

  • Fleet management and control
  • Remote immobilization
  • Accident detection
  • Driver behavior monitoring and education
  • Jamming detection

Versions

Available product versions:

TRACE5-4G-LTE CAT M1/NB2 and 2G fallback network.

TRACE5-4G-LTE CAT M1/NB2 and 2G fallback network, IP67 housing.

Request a quote

For more information about Trace5, please contact us.
